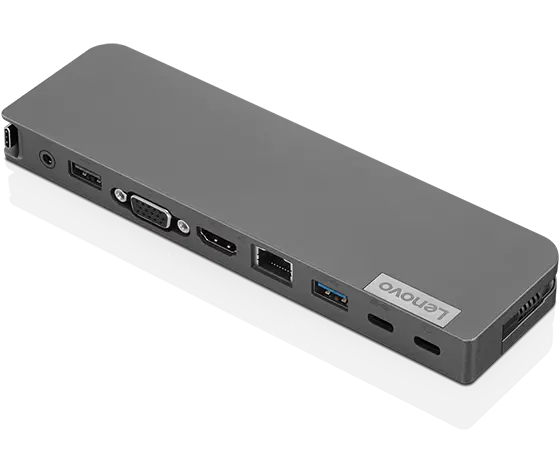

Lenovo USB-C Mini Dock 40AU0065US
Product model:40AU0065
Product origin:US
Release date:2022-05-04
ASIN:40AU0065US
Next product Last product

Detailed introduction

Overview

Expand Your Potential with An Universal Mini Dock; Lenovo understands that modern business depends on a wide variety of PC’s and even brands to meet their business needs. To make this easier Lenovo USB-C Mini dock is compatible with Lenovo notebooks as well as notebooks from other brands in the industry. **

**DISCLAIMER:Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.


Key Details

  • One Cable, Endless Capabilities

  • Enterprise Networking and Security

  • Compact Design

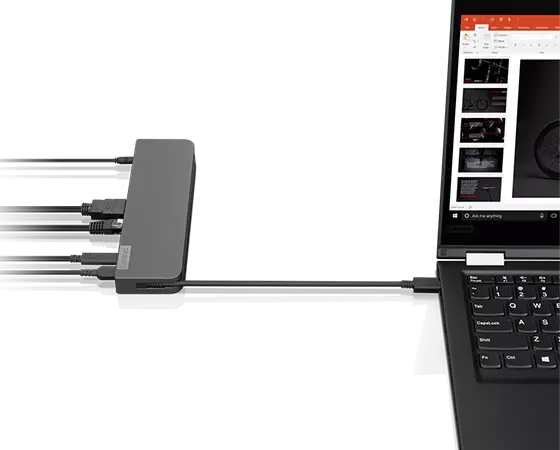

  • Easily connect to an external 4K or 1080P display* with HDMI or VGA, wired RJ45 network, two USB-A devices, and USB-C power pass-through – all via a Single USB-C cable that disappears inside the minimalist design

  • Compatible with Lenovo branded USB-C notebooks thanks to easy, driverless plug-and-play. Power any notebook up to 45W with the included 65W USB-C power adaptor

  • The Lenovo USB-C Mini Dock provides secure enterprise network manageability such as PXE boot and Wake-On LAN

  • It also supports passing ThinkPad Mac through the dock for IT to identify the system in large networks accurately


Tech Specs

ColorIron Gray
Max Number of External Monitors1
Weight156g
Refresh Rate3840 x 2160 / 60 Hz
AC PlugUSB-C
Hardware RequirementsFull featured USB-C port including PD, DP, USB ….
Warranty TypeCRU
Output Power45W
BrandLenovo
OS RequirementsWindows 10
Packed Weight565g
Agency ApprovalsCB, BSMI, SII, CU, Ukraine, Kvalitet, LOA, NOM, cULus, FCC, ICES, CE, RCM, VCCI, KCC, EAC

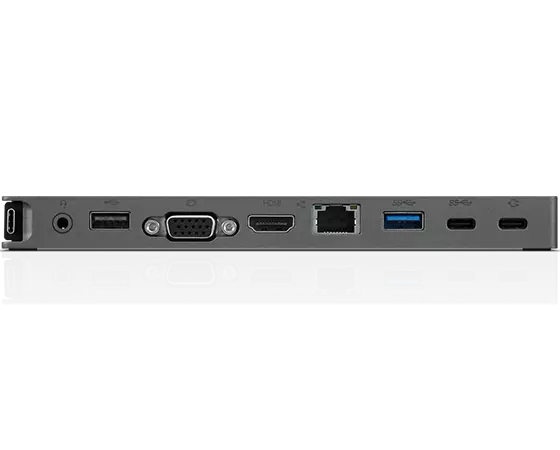

Audio Ports1*3.5mm combo jack
Charging Port1*USB-C
USB Ports1*USB-C 3.1 Gen1, 1*USB-A 3.1 Gen1, 1*USB2.0
Video Ports1*HDMI2.0 (support up to 4K@60Hz, HDR&HDCP2.2), 1*VGA port (support up to 1080p@60Hz), Only one external display can be connected on the dock at one time.
Ethernet1*Giga bit RJ45
Package TypeBrown Box
Packed Dimensions (L x D x H)215*100*65
Height17mm
Length180mm
Depth53mm
Warranty Period1 year
Maximum Operating Temperature40
Minimum Operating Temperature-5
Maximum Relative Humidity (%)95
Minimum Relative Humidity (%)20
Driver NeededUSB to Ethernet Driver
Input Power65W
Physical Security FeatureNA
Power ButtonNA
Power DeliveryPD3.0
Shipment Group1*Mini Dock, 1* 65W USB-C power adapter, 1* power cord, 1*user guide, 1* warranty card
Supported Operating SystemsOS Independent
GeneralLenovo USB-C Mini Dock_US
