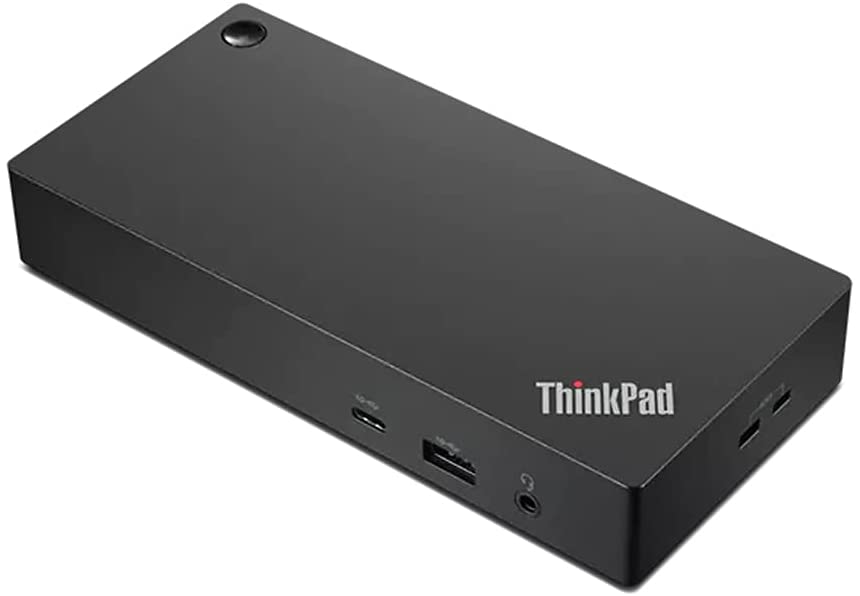

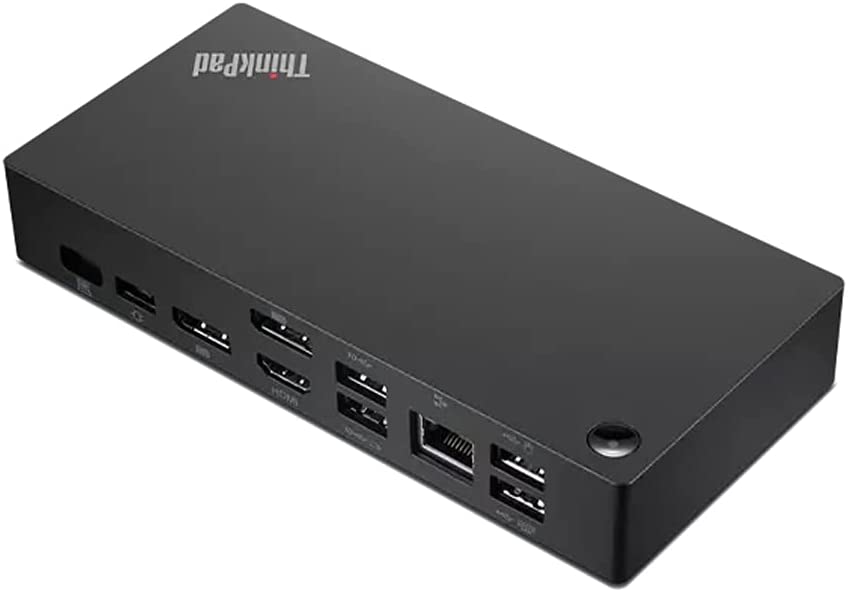

ThinkPad Universal USB-C Dock 40AY0090US
Product model:40AY0090
Product origin:US
Release date:2022-05-04
ASIN:40AY0090US
Nothing Last product

Detailed introduction

Overview

The smarter way to work, introducing the ThinkPad Universal USB-C Dock. This advanced, universally compatible one-cable docking solution lets you work smarter, not harder. It comes with a vast array of ports, next-gen plug and play functionality, and rapid charging capabilities (up to 100W for most USB-C notebooks*). Smart enough to install critical firmware updates automatically, it’s ideal for any mixed-PC environment and home-based working, and gives you the freedom and power to do more.


* The in-box 90W power adapter charges ThinkPad and other USB-C notebooks up to 65W. For 100W charging, an optional slim tip 135W power adapter is required (PN: 4X20E50558); sold separately.


Key Details

  • One Dock. No Limits: Ideal for both office-based and remote working, it’s an IT manager’s dream—critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported

  • One Cable. No Clutter: ThinkPad Universal USB-C Dock lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories. What’s more, this advanced one-cable docking solution gives you more desk-space to work and play with

  • One Remote Workforce: Whether end users are in the office, hot-desking, or working from home, IT managers can remotely and securely gather key information about the dock and its attached devices—with minimal interruption to the user’s workflow


Tech Specs

ColorBlack
Max Number of External Monitors3
Weight340g
Refresh Rate2x 3840x2160 @60Hz, 1x 3840x2160 @30Hz
AC PlugSlim-tip
Warranty TypeCRU
Output Power65W with 90W power adapter connected,100W with 135W power adapter connected
BrandThinkPad
OS RequirementsWindows 10, Windows 7
Packed Weight955g
Agency ApprovalsFCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM

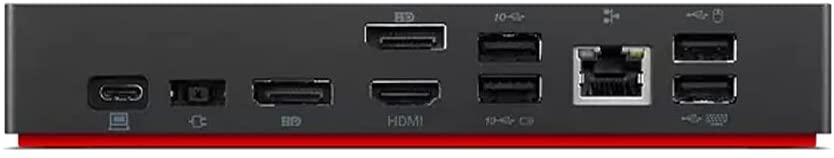

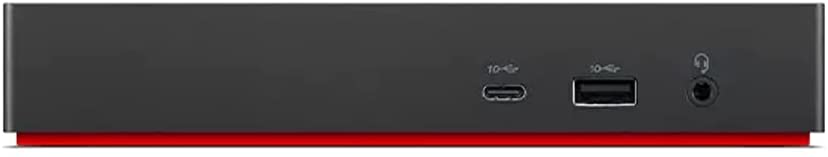

Audio Ports1x Combo Audio Jack
Charging PortDC-IN
USB Ports3x USB3.1, 2x USB2.0, 1x USB-C
Video Ports2x Display Port, 1x HDMI Port
Ethernet1x Gigabit Ethernet
Package TypeBrown Box
Packed Dimensions (L x D x H)210*158*75mm
Height30.75 mm
Length171mm
Depth80mm
Warranty Period3years
Maximum Operating Temperature35° C
Minimum Operating Temperature0° C
Maximum Relative Humidity (%)95% ( no Condensation)
Minimum Relative Humidity (%)20%
Driver NeededYes
Input Power90W
Physical Security Feature2x Security lock slot
Power ButtonYes
Power DeliveryYes
Shipment GroupThinkPad Universal USB-C Dock, 90W AC Power adapter, Power cord, Pubs, Cable
Supported Operating SystemsOS Independent
GeneralThinkPad Universal USB-C Dock
